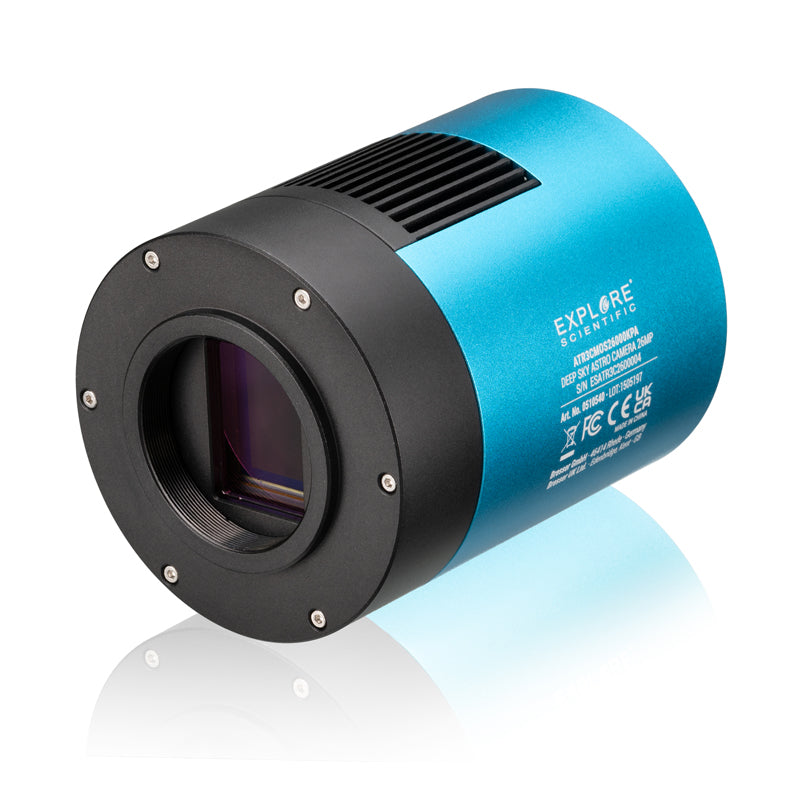

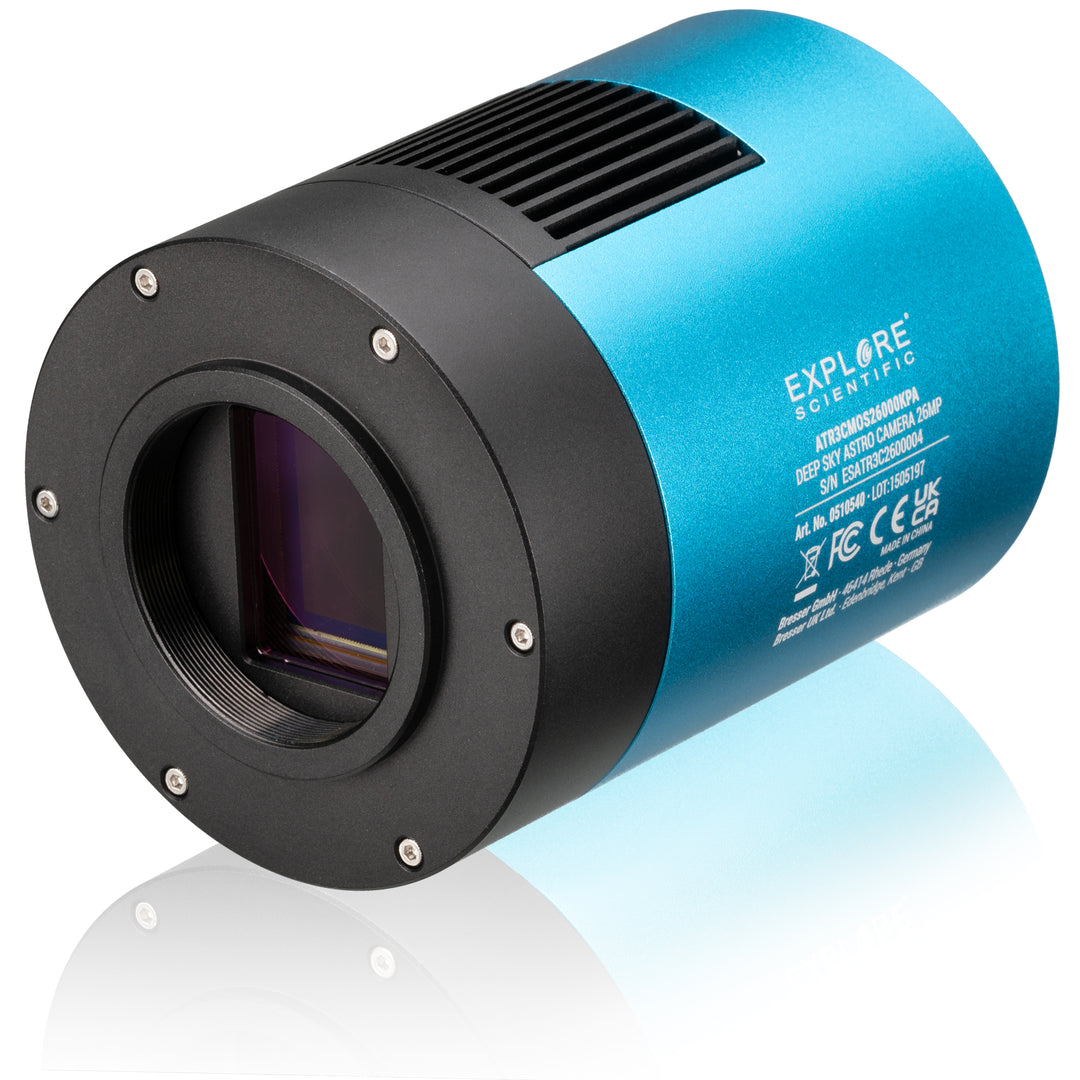

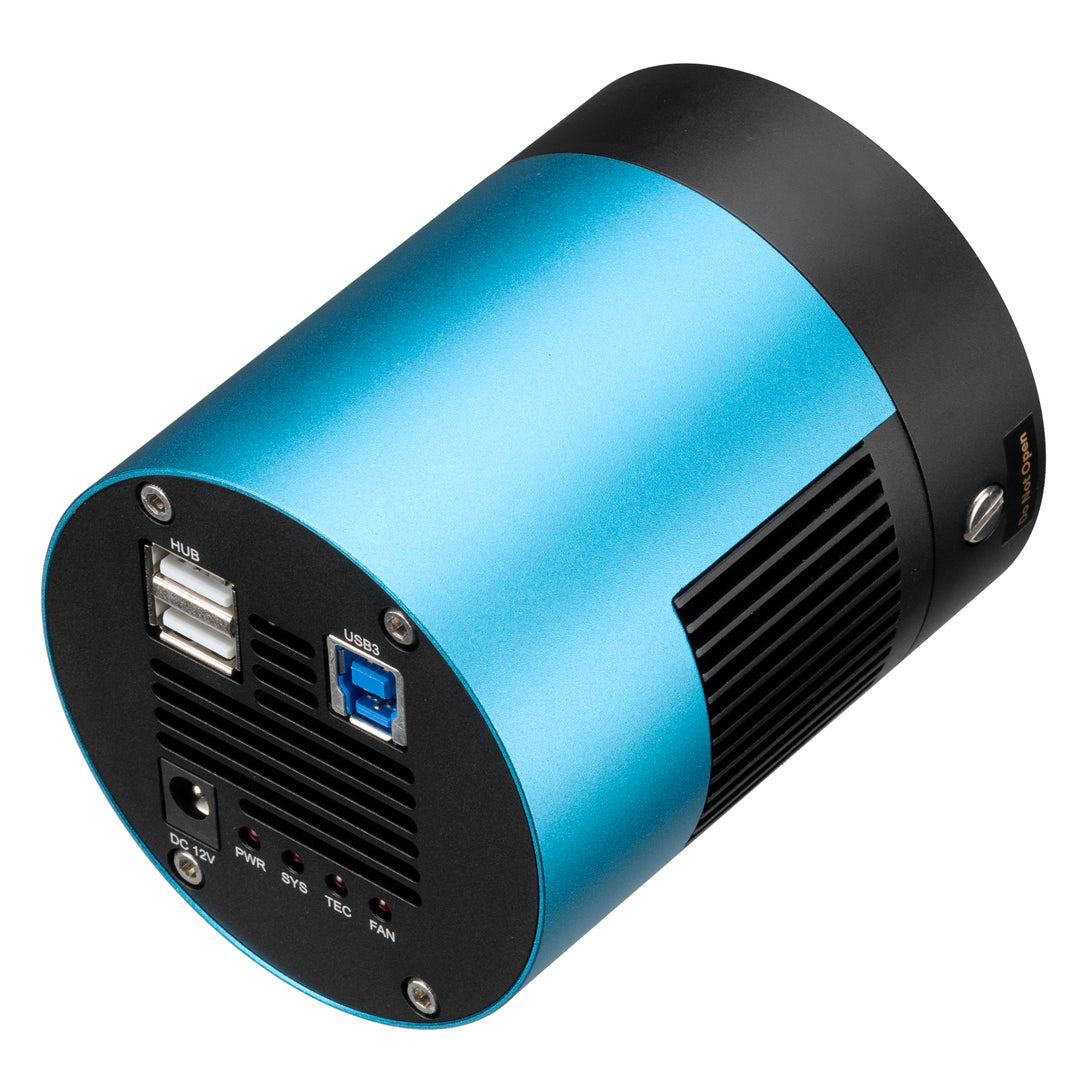

This extremely high-resolution deep sky camera from Explore Scientific comes with a large SONY EXMOR IMX-571 APS-C CMOS sensor and active cooling. The extremely high sensitivity is achieved thanks to the SONY back illumination technology. Thanks to the fast USB 3.0 computer interface, all image data is transferred within seconds, reducing the need for high buffering or delay times.

Simply connect the camera to your telescope via female T2 thread (M42, 0.75mm) or via the supplied 2" (50.8 mm) plug-in adapter and then install the drivers as required and you're ready to go.

The included EXPLORE Capture professional software not only offers the necessary basic functions for image and video recording, but also includes many special functions for image post-processing and camera setup. Features such as live image display, exposure settings, white balance, dark image print, stacking, timelapse shooting and much more can be individually configured.

This Explore Scientific Deep Sky Astro camera has a highly sensitive and very low-noise SONY EXMOR IMX-571 APS-C CMOS sensor, which can be additionally cooled down to 40°C below ambient temperature by the two-stage thermoelectric cooling. This guarantees far less noise and fewer hot pixels in your shots compared to normal DSLR cameras. As a result, your images are not only much sharper and detailed, but simply containmore usable image information for post processing. Due to the controlled setting of the desired camera temperature,
dark frames can be created at any time after the imaging session. The large-format CMOS sensor with a diagonal of 28.3mm also allows a wider image FOV and greatly simplifies the setting and centering of objects.

The backlit EXMOR CMOS sensor increases quantum efficiency up to 80% at 533nm, which means an extremely high luminous efficiancy and therefore particularly bright and high-contrast photos.

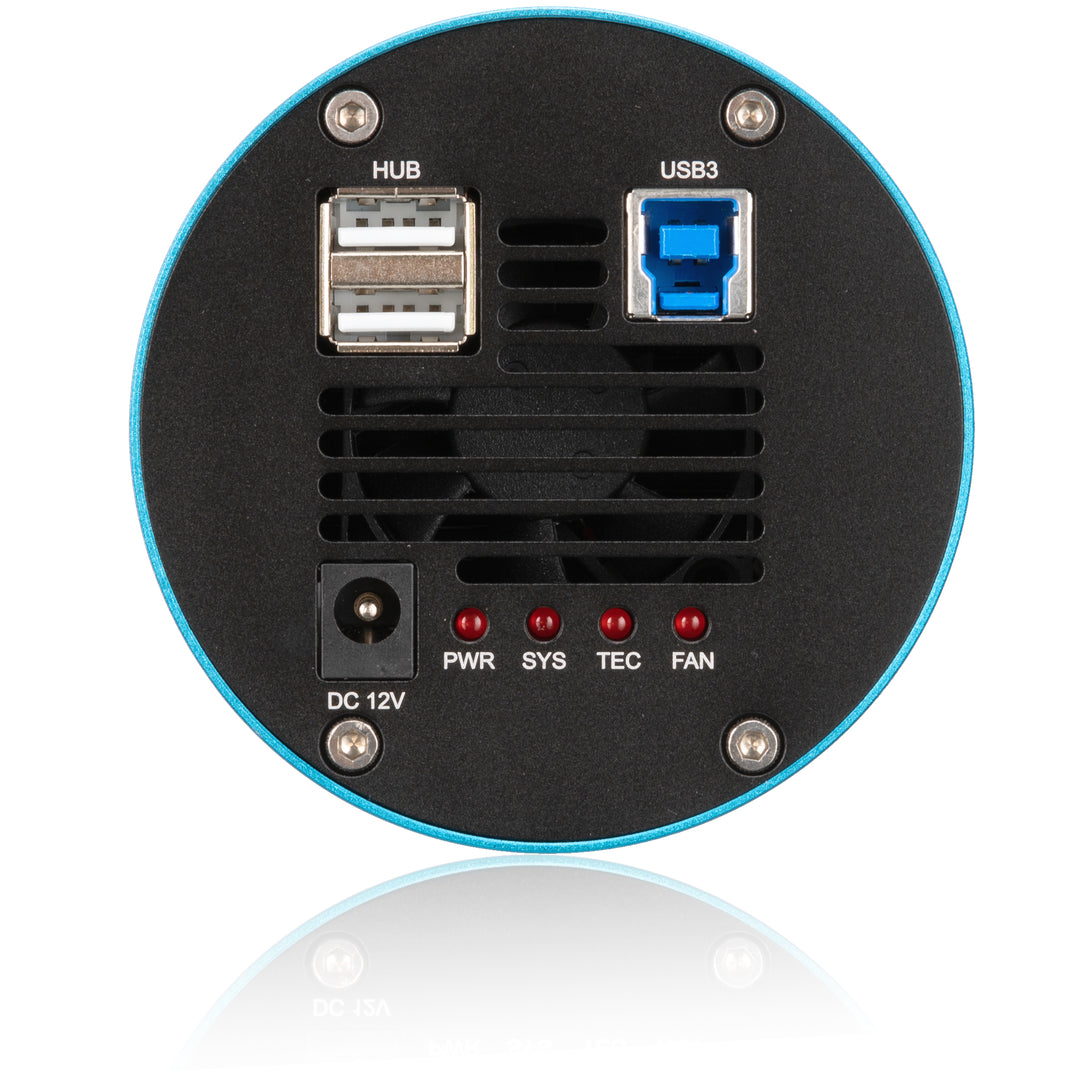

The camera also has a built-in USB hub on the back with 2 x USB 2.0 ports. This allows you to Connect additional accessories such as an autoguider camera or auto-focusser etc. via short USB cable and thus reduce the risk of Cable clutter and cable breaks.

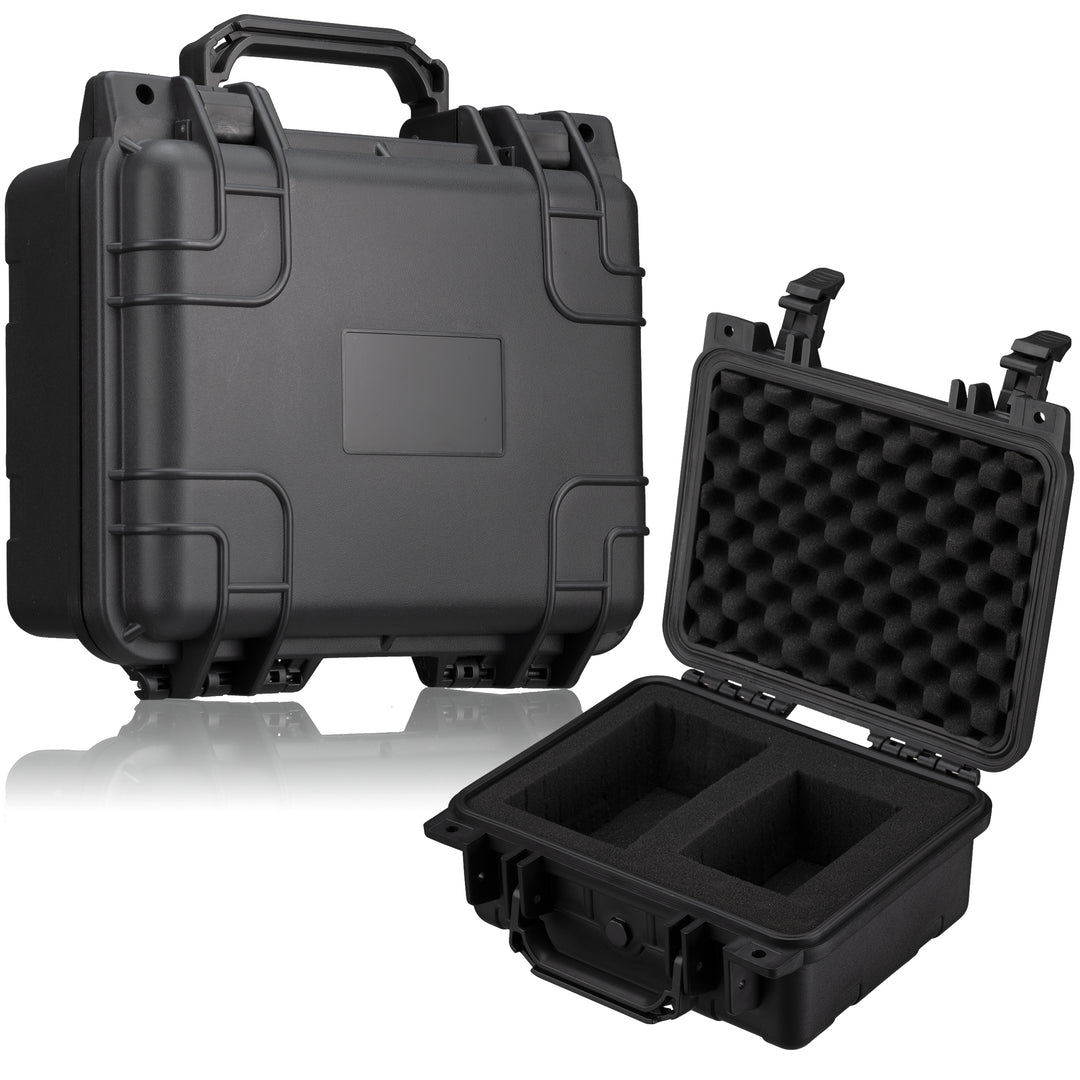

A sturdy hard case is also included for the camera.

Field of view for different focal lengths in arc minutes and degrees:

• 400mm - 201 ́ x 135 ́ (3.4 x 2.3 degrees)
• 500mm - 161 ́ x 108 ́ (2.7 x 1.8 degrees)
• 600mm - 134 ́ x 90 ́ (2.2 x 1.5 degrees)
• 700mm - 115 ́ x 77 ́ (1.9 x 1.3 degrees)
• 800mm - 100 ́ x 67 ́ (1.7 x 1.1 degrees)
• 900mm - 89 ́ x 60 ́ (1.5 x 1.0 degrees)
• 1000mm - 80 ́ x 54 ́ (1.3 x 0.9 degrees)
• 1250mm - 64 ́ x 43 ́ (1.1 x 0.7 degrees)
• 1500mm - 53 ́ x 36 ́ (0.9 x 0.6 degrees)
• 1750mm - 46 ́ x 31 ́ (0.8 x 0.5 degrees)
• 2000mm - 40 ́ x 27 ́ (0.7 x 0.45 degrees)

Camera Specification:

• Camera Type: ASTRO Color Camera 26.0MP ATR3CMOS26000KPA
• Data output: single images and video
• Image Sensor: SONY EXMOR IMX-571 CMOS Color Sensor
• Adjustable resolution: 6224x4168 / 3104x2084 / 2064x1386
• Adjustable Binning: 1x1/2x2/3x3
• Frame Rate Per Second (FBS): 6.8 / 28 / 63
• Physical sensor size in pixels: 6224 x 4168
• Megapixels: 26MP
• Sensor size: 23.48 x 15.67mm (APS-C format)
• Screen diagonal: 28.3mm
• Pixel size: 3.76 μm x 3.76μm
• Bit depth: 8 bit / 16 bit
• Flange distance: 17.5mm
• Closure Type: Rolling Shutter
• Internal camera memory: 512 MB DDR 3 RAM
• Thermoelectric cooling with fan: Yes, up to 40°C below ambient
• Adjustable exposure times: 150μs to 60min
• Operating temperature: -10 to +50°C (30-80% RH)
• Cable length USB 3.0: 150cm
• DC cable length power supply: 200cm
• CNC machined housing made of aluminum

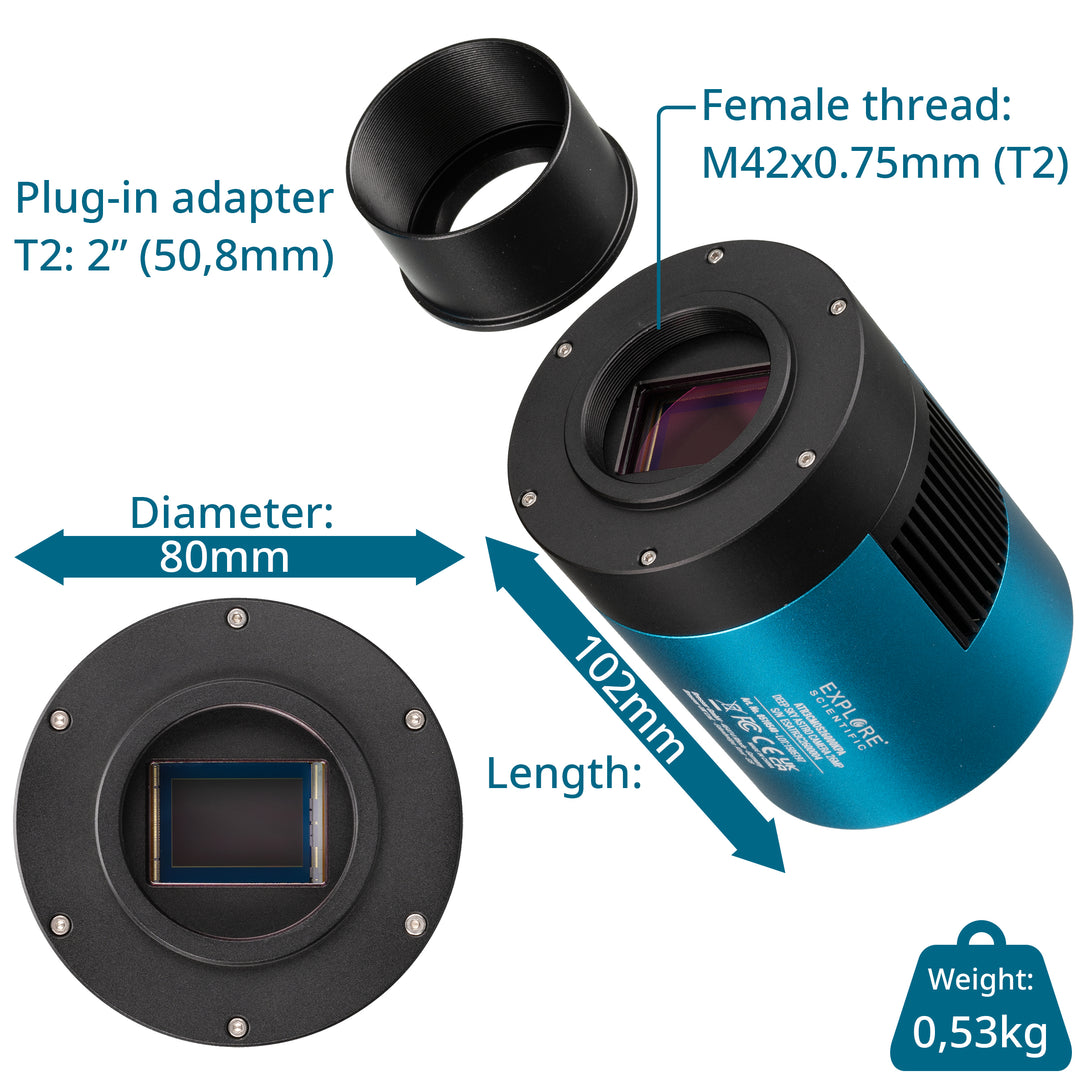

• Camera diameter: 80mm; length: 102mm
• Camera weight: 0.53kg
• Camera connector diameter: 2.0 inches (50.8mm)
• Camera connection thread: T2 (M42x0.75mm)
• Filter thread: Yes, 2.0 inch in receptacle
• Camera connection to PC: USB 3.0
• Built-in USB hub with 2 x USB 2.0 ports
• Power supply: Power supply 12 volts 3.0 amps included
• Software: EXPLORE Capture included
• Camera driver and ASCOM driver included
• Operating System: WINDOWS 10 + 11
• PC Requirements: CPU Intel Core2 2.8 Ghz or higher / 2 GB Ram / USB 3.0

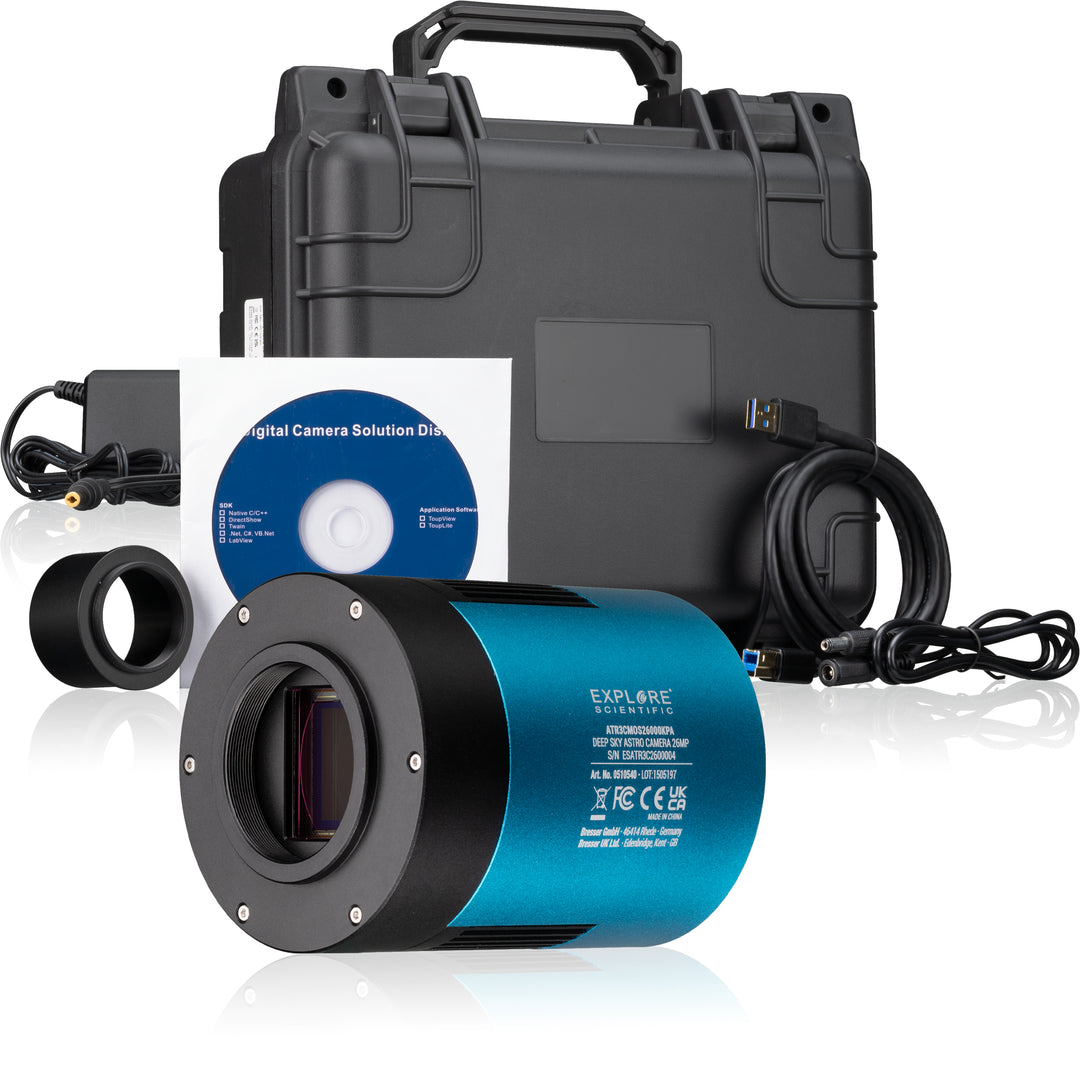

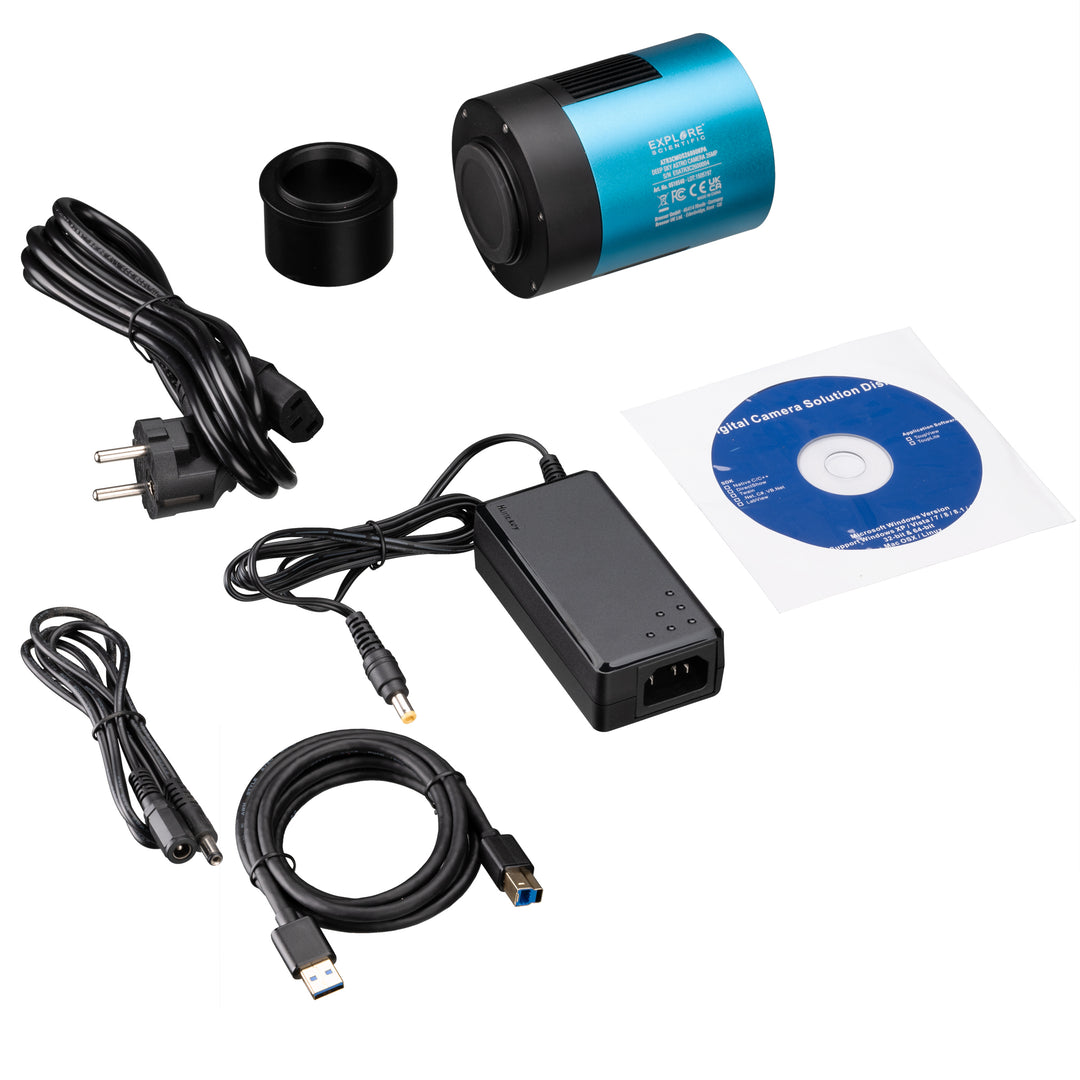

Whats included:

1. Deep Sky Astro Camera 26MP
2. Plug-in adapter T2 thread to 2.0" (50.8 mm)
3. USB 3.0 connection cable 150cm
4. Power supply 230V / 12V 3.0A
5. Dust cap for camera opening
6. Software CD
7. Hard Case
8. Operating instructions
